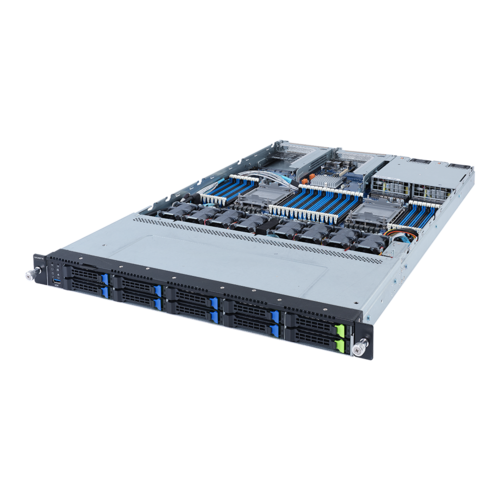

R182-N20 (rev. 100) Rack Server – 3rd Gen Intel® Xeon® Scalable – 1U DP 10-Bay Gen4 NVMe/SATA/SAS

438 x 43.5 x 780

MR92-FS1

3rd Generation Intel^® Xeon^® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

2 x LGA 4189
Socket P+

Intel^® C621A Chipset

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Supports Intel^® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 3200/2933/2666 MHz

Rear side:
2 x 1Gb/s LAN ports (Intel^® I350-AM2)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920×1200@60Hz 32bpp, DDR4 SDRAM

Front side:
2 x 2.5″ Gen4 NVMe/SATA/SAS hot-swappable bays
8 x 2.5″ SATA/SAS hot-swappable baysSAS card is required for SAS devices support

Depends on SAS add-on card

Intel^® SATA RAID 0/1/10/5

Riser Card CRS101E:
– 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0Riser Card CRS101G:
– 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function

2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery switch

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

1+1 1300W 80 PLUS Platinum redundant power supplies

AC Input:
– 100-240V~/ 12-7A, 50-60Hz
– 200-240V~/ 8A, 50-60Hz

DC Input:
– 240Vdc/ 6.5A

DC Output:
– Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
– Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings
